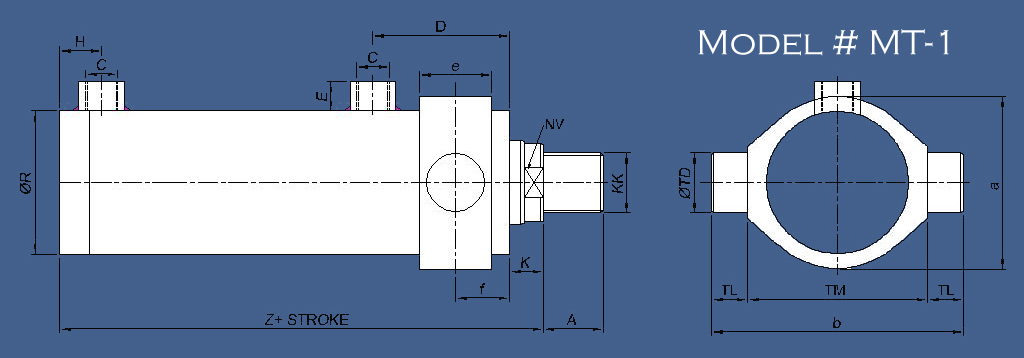

| FRONT TRUNNION MT 1 : |
| BORE DIA |
40 |
50 |
63 |
80 |
100 |
125 |
140 |
160 |
180 |
200 |
| ROD DIA |
22/28 |
28/36 |
36/45 |
45/56 |
56/70 |
70/90 |
80/100 |
90/100 |
100/125 |
110/140 |
| ZB |
163 |
193 |
204 |
235 |
255 |
278 |
302 |
345 |
376 |
402 |
| A |
16 |
22 |
28 |
35 |
45 |
45 |
58 |
65 |
80 |
100 |
| C |
G 3/8" |
G 1/2" |
G 1/2" |
G 3/4" |
G 3/4" |
G 1" |
G 1" |
G 1" |
G 1 1/4" |
G 1 1/4" |
| D |
75 |
87 |
92 |
110 |
115 |
129 |
139 |
149 |
164 |
179 |
| E |
16 |
20 |
20 |
25 |
25 |
30 |
30 |
30 |
35 |
35 |
| H |
22 |
28 |
32 |
35 |
42 |
50 |
52 |
65 |
71 |
75 |
| K |
18 |
23 |
25 |
25 |
30 |
30 |
35 |
35 |
40 |
40 |
| KK |
M16X1.5 |
M22X1.5 |
M28X1.5 |
M35X1.5 |
M45X1.5 |
M45X1.5 |
M58X1.5 |
M65X1.5 |
M80X2 |
M100X2 |
| NV |
18 |
24 |
32 |
38 |
48 |
60 |
70 |
75 |
95 |
120 |
| TDe8 |
25 |
30 |
35 |
45 |
50 |
60 |
63 |
70 |
80 |
90 |
| TM |
70 |
85 |
105 |
125 |
150 |
175 |
195 |
220 |
250 |
280 |
| TL |
12.5 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
| a |
65 |
80 |
100 |
120 |
145 |
170 |
190 |
215 |
240 |
265 |
| b |
95 |
115 |
145 |
175 |
210 |
245 |
275 |
310 |
350 |
390 |
| e |
30 |
40 |
45 |
55 |
60 |
70 |
75 |
85 |
95 |
110 |
| f |
40 |
50 |
55 |
70 |
75 |
85 |
95 |
105 |
115 |
130 |
| R |
50 |
60 |
75 |
95 |
120 |
150 |
168 |
190 |
217 |
245 |
|
|
|
|
